Name: Gas Fire Pit Burner Kit - Rectangle Twin - Brightstar Fires
Brand: Brightstar Fires
SKU: GFP-builtin-rectdbl
Availability: InStock

Description

Relax together outdoors with a gas fire pit burner kit from Brightstar Fires. Our burner kits are designed to be installed permanently into the landscaping of your garden or outdoor space. This kit produces powerful linear flames across it’s entire length.

This adjustable and powerful burner kit will keep you and your guests warm and create a stunning atmosphere on those chilly nights.

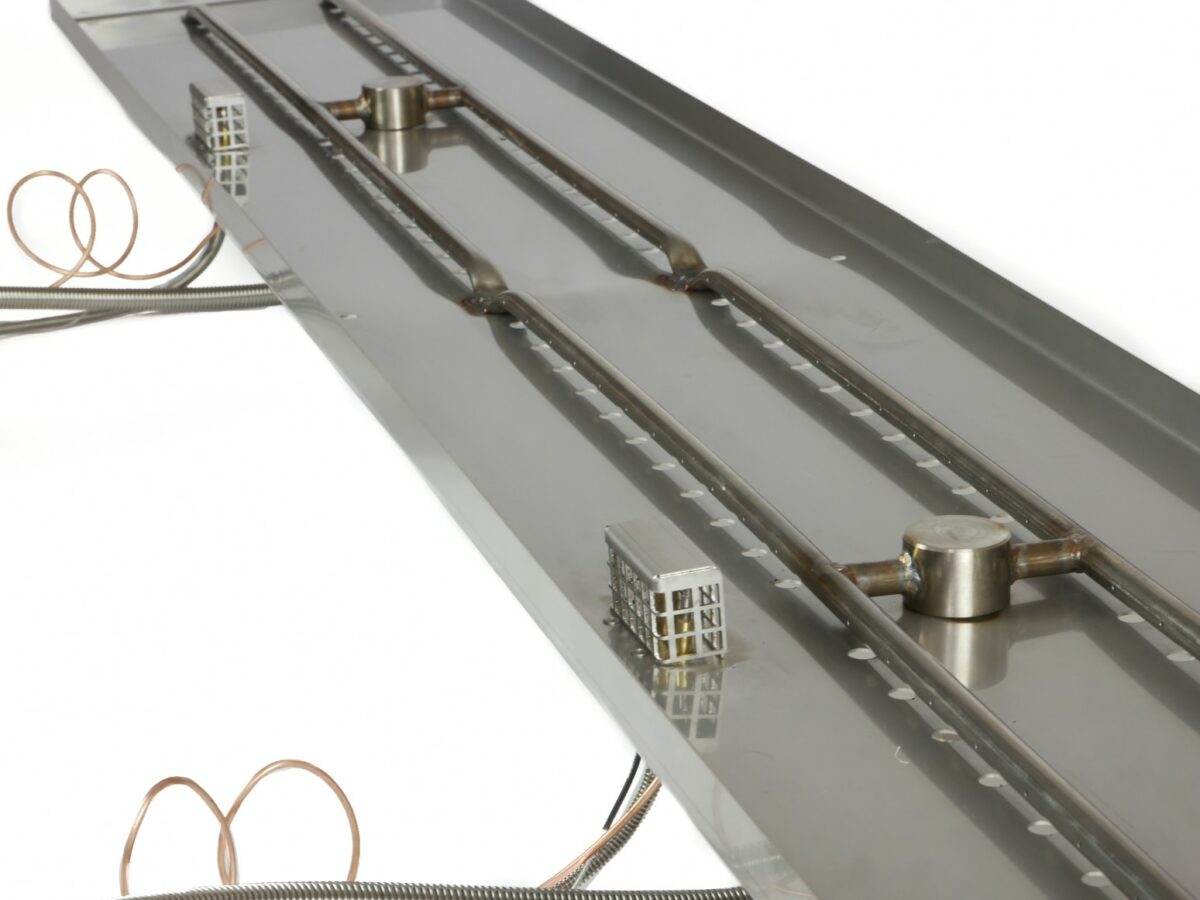

2024 design improvement: This kit now consists of two separate burner plates, which are bolted together on site with included fixings. The twin burner kit is now much easier to handle, install and service. (Product photos not yet updated)

With both burners working, this gives around 1.8 metres of continuous flame and heat. Each burner operates independently with it’s own set of controls.

Made in the UK
Mains natural gas or LPG bottles (propane: 2 x 19kg minimum – LPG bottle guide)
Powerful 36 kW output (2 x 18 kW)

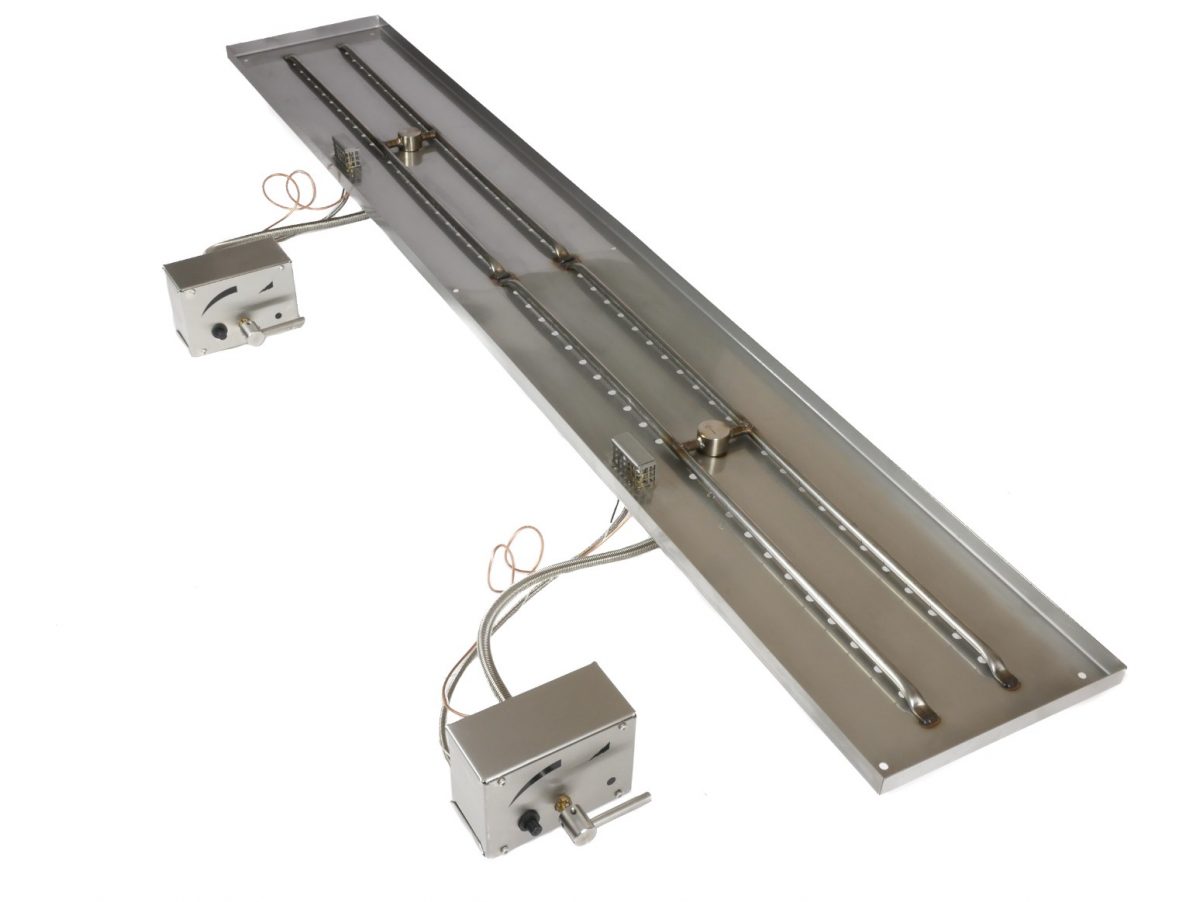

Two control boxes
Adjustable flame height
Push-button battery ignitor (no mains power needed)
Flame failure safety device
CE approved safe
Includes lava rock to cover the burner

Dimensions

Burner, after assembly: 190 x 30 x 2.5 cm
Control box: 160 x 110 x 72 mm
Connections: 57.5 cm (standard) / 120 cm (long)

If you would like both control boxes right next to each other in the fire pit structure, you’ll need to order with the long connections option, to provide enough length to allow this.

Product Installation Manuals

Specification

Weight	38 kg
Brand	Brightstar Fires
Output Power	36 kW maximum (adjustable, 2 x 18 kW)
Gas Type	LPG Bottle , Mains Gas
Size	190 cm x 30 cm
Material	Stainless Steel
Connections	Standard 575mm , Long 1200mm
Product Type	Burner Kit
Shape	Rectangle Twin

Gas Type

All our gas fire pits & burner kits are available in mains natural gas or LPG bottle versions. You’ll still get the same powerful 18kW heat output, regardless of gas type. We advise connecting to the mains gas supply if possible. Installation costs could be higher, but running costs would be lower.

The burners are not interchangeable, so it’s important to select the correct gas type when ordering. If you end up with the wrong version – contact us.

Gas Type Comparison	Natural Mains Gas	LPG Bottle (Propane)
Maximum Heat	18kw	18kw
Installation	Will need a gas supply pipe from the meter. This cannot be taken from an existing supply pipe to another appliance. Check with your gas engineer first.	Will need a gas pipe from the bottle location. This could be a lot closer, so easier to install. We supply a 4m hose (above ground use only).
Convenience	Always available. No bottles to run out half way through your party.	Convenient if you cannot install a mains gas burner.
Multiple Burners	Check with your gas engineer to ensure you have enough spare capacity at the meter.	You can have multiple burners as each runs from its own bottle.
Running Costs	Natural gas is cheaper than bottled gas.	Bottled gas is more expensive than natural gas.

Connections

Connections – Two lengths available – Standard = 575 mm or Long = 1200 mm?

This is the flexible pipework between the burner and the control box.

We measure the distance from the centre of the burner, to the front face of the control box.

These connections cannot be extended later on, so choose the correct length when ordering.

Which length do I need?

That depends on the size of your firepit. The standard connection are perfect for fire pits up to 1.2m external dimension. (This assumes the control box is recessed back into the structure slightly.) If your pit is larger than 1.2m external, then you will need the longer connections (additional cost applies)

The connection are flexible so any surplus just sits inside your pit.
