Home Shop Installation Installation Kit for 20mm MDPE

Installation Kit for 20mm MDPE

£84.00 – £96.00

This kit has all the fittings needed when using 20mm MDPE gas pipe. (MDPE gas pipe not supplied)

Ideal for LPG propane installations up to 45 metres from bottle to gas fire pit.

Stainless steel flexible hose available in 600mm or 1,000mm length at additional cost.

MDPE Installation Guide

Clear
  • Description
  • Specification
Description

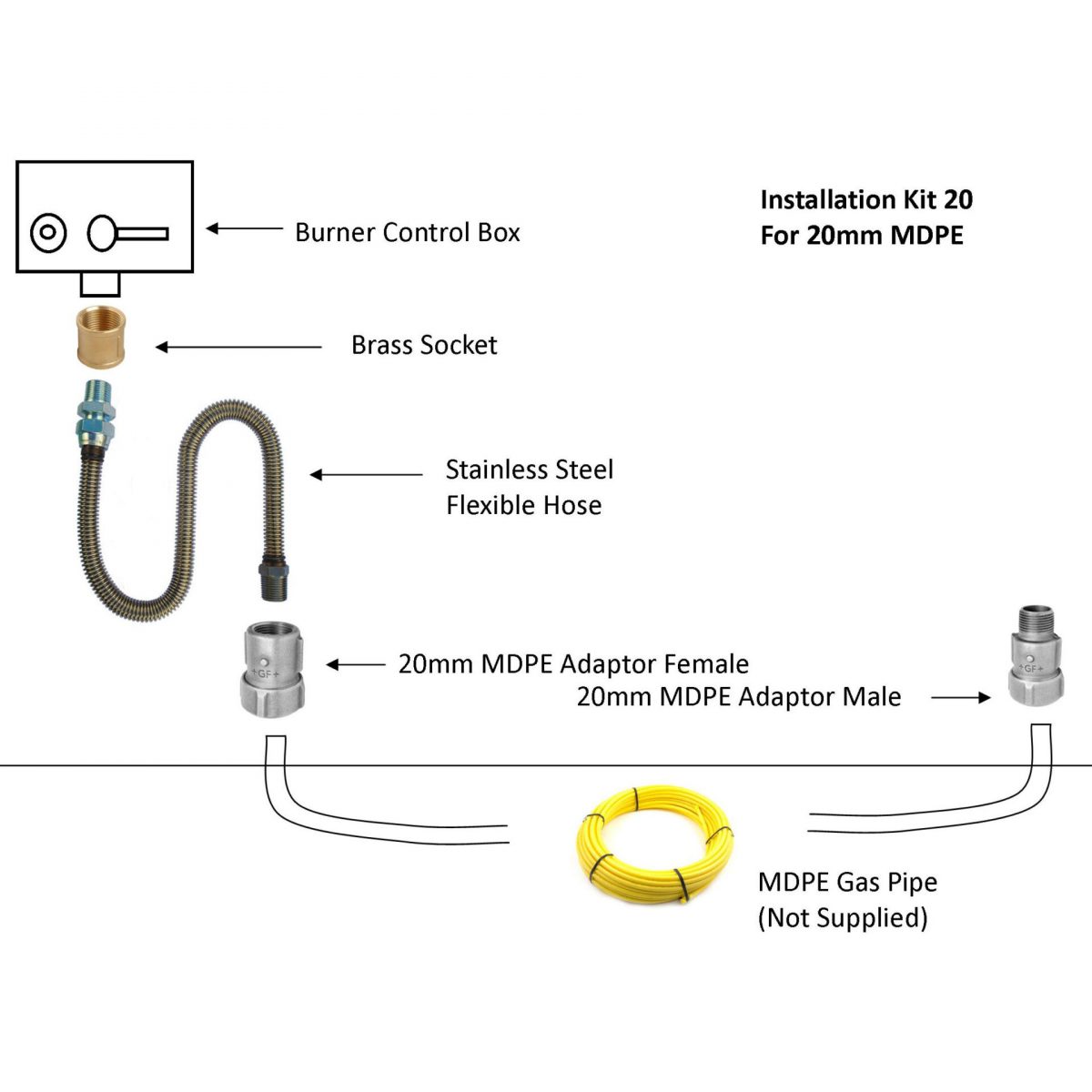

This kit has all the fittings needed when using 20mm MDPE gas pipe (pipe not supplied)

This can be used for LPG (Propane) Installations with a pipe run up to 45mtrs maximum.  (If greater than 45mtrs, you will need to use 25mm MDPE kit)

  • 20mm MDPE Compression female adaptor for the burner end.
  • 20mm MDPE Compression male adaptor for the supply end.
  • 600mm / 1,000mm flexible stainless steel hose and union adaptor, to connect the end of your MDPE pipe to the burner.
  • Brass socket to connect the flexible stainless steel hose onto the burner inlet. (located under the control box)

Note:  With all our LPG burners, we supply a nozzle attachment, (which screws onto the MDPE Male Adaptor)  4mtrs of LPG hose, and 2 stainless pipe clips with each burner.   These are used to connect to your bottle regulator (also available on our website).  Suggest you cut the hose to the required length as needed.

MDPE Installation Guide

Specification
Weight

1.20 kg

Steel Hose Length

600mm , 1 , 000mm
